產品展示
PRODUCT

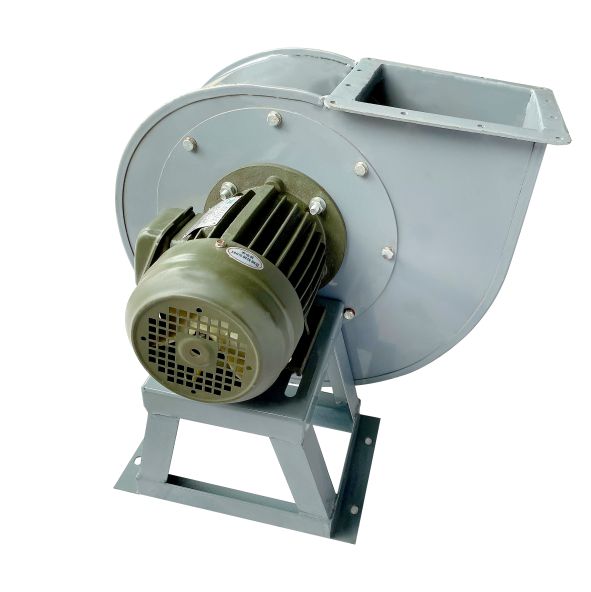

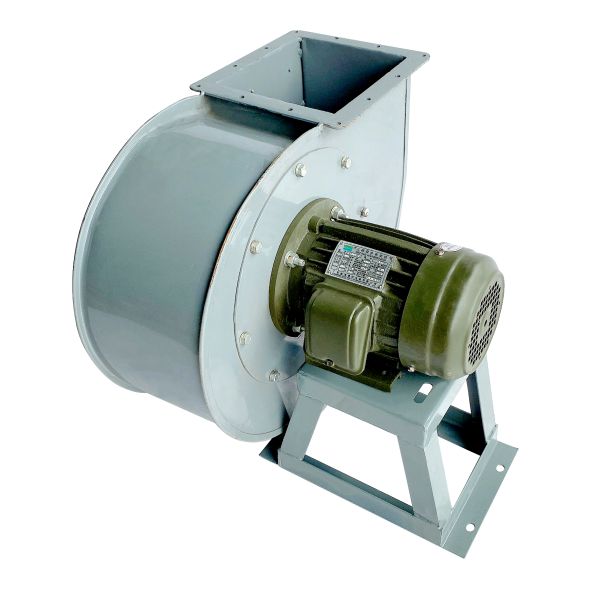

排塵專用風機,不易積塵、耐磨損
適用于排送含油塵埃、木質碎屑、細碎纖維的氣體,也可用
為一般的通風換氣用
可以應要求制作成多種傳動式的單機或聊機體
11種型號:2.8A-10C
Specially designed for dust extracting ,not easy to mass
the dirt ,attrition resistant
Suitable for conveying the air with dirt,sawdust ,fine fiber ,
also can be used for ventilation
It can be customized as various kinds of drive type single fan
or succession fan
11 models :2.8A-10C
產品詳情
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure (Pa) |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
整機單價 Unit price of complete machine (RMB) |
風輪價 Wind turbine price (RMB) |
2.8A |
2.2 |
2900 |
1065-2450 |
1283-1087 |
500x290x470 |
|
|
Φ180 |
160x200 |
1800 |
400 |
3A |
3 |
2900 |
1183-2891 |
1452-1205 |
566x303x491 |
|
|
Φ210 |
180x234 |
1900 |
420 |
4A |
2.2 |
1450 |
1404-3420 |
676-568 |
573x401x702 |
|
|
Φ280 |
240x294 |
2200 |
600 |
5A |
5.5 |
1450 |
2733-6660 |
1117-931 |
759x502x795 |
|
|
Φ350 |
300x355 |
4000 |
800 |
6A |
7.5 |
1450 |
4725-11552 |
1067-1343 |
815x602x927 |
|
|
Φ420 |
360x415 |
5200 |
1000 |
3 |
960 |
3130-7045 |
706-598 |
815x560x927 |
|
|
Φ420 |
360x415 |
4400 |
||
7A |
11 |
1400 |
5585-18900 |
1980-1690 |
|
|
|
|
|
7000 |
1600 |
