產品展示
PRODUCT
屬中壓大流量離心通風機，葉輪由后傾葉片，錐弧形
前盤和平板型后盤組成
效率高、噪聲低、堅固耐用
可用于一般工廠及各類賓館、酒店集中空調系統氣體輸
送、廚房排氣以及地下室、影劇院、會議室、體育館等
大型建筑物的通風換氣、降溫除塵等
型號：2A-7A
Medium pressure centrifugal fan with large
air volume ,the impeller is consist of backward
blades ,cone curved front plate and
flat rear plate
High efficiency ,low noise ,strong and durable
Used for air conveying of air conditioning system
in the factory ,hotels and restaurant ,air exhausting
cooling and dust extracting in basement ,cinema ,
meeting room ,gym ,etc
Model no.:2A-7A
產品詳情
|
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
加腳單價 Extra unit price （RMB） |
風輪價 Wind turbine price （RMB） |
整機單價 Unit price of complete machine（RMB） |
|
2A |
0.55 |
2800 |
878-1600 |
285-363 |

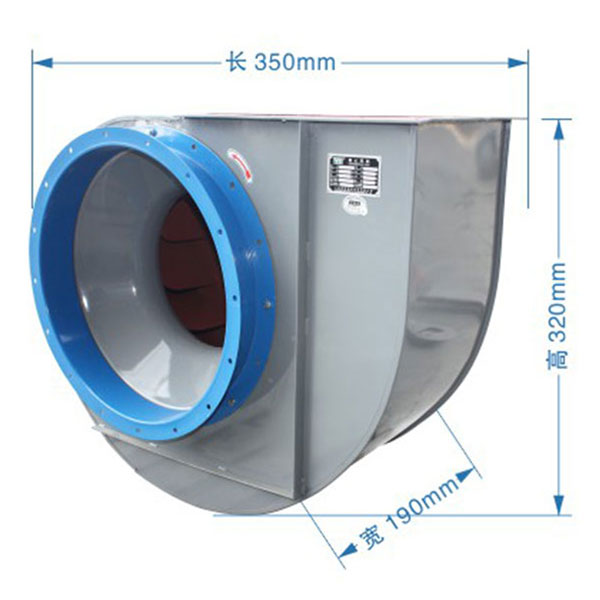

350x190x320 |
19.2 |
2.5 |
Φ200 |
170x130 |
820 |
120 |
760 |
|
2.5A |
1.1 |
2800 |
1020-1911 |
850-450 |
380x 190x400 |
23 |
2.8 |
φ250 |
198x145 |
880 |
140 |
820 |
|
2.8A |
0.75 |
1450 |
565-1178 |
294-152 |
|
|
|
Φ |
|
1180 |
180 |
1040 |
|
1.5 |
2900 |
1131-2356 |
994-606 |
570x560x470 |
38 |
4.4 |
Φ280 |
195x220 |
1260 |
1090 |
||
|
3.2A |
3 |
2900 |
1688-3517 |
1300-792 |
|
|
|
φ |
|
1460 |
240 |
1300 |
|
1.1 |
1450 |
844-1758 |
324-198 |
|
|
|
φ |
|
1380 |
1200 |
||
|
3.6A |
3 |
2900 |
2664-5268 |
1578-989 |
740x670x600 |
60 |
6.9 |
Φ360 |
260x288 |
1760 |
400 |
1600 |
|
1.1 |
1450 |
1332-2634 |
393-247 |
|
|
|
φ |
|
1440 |
1260 |
||
|
4A |
5.5 |
2900 |
4012-7419 |
3014-1320 |
810x770x710 |
83 |
12.6 |
Φ400 |
280x320 |
3200 |
460 |
2960 |
|
1.1 |
1450 |
2856-5281 |
364-416 |
|
|
|
φ |
|
1900 |
1660 |
||
|
4.5A |
7.5 |
2900 |
5712-10562 |
2554-1673 |
910x800x750 |
111 |
14 |
Φ450 |
305x360 |
3520 |
560 |
3200 |
|
1.1 |
1450 |
2856-5281 |
634-416 |
|
|
|
φ |
|
2200 |
1800 |
||
|
5A |
15 |
2900 |
7728-15455 |
3187-2019 |
|
|
|
φ |
|
5500 |
620 |
5000 |
|
2.2 |
1450 |
3864-7728 |
790-502 |
911x960x830 |
87 |
18 |
Φ500 |
400x350 |
2800 |
2500 |
||
|
5.6A |
22 |
2900 |
10122-25736 |
1450-2330 |
|
|
|
φ |
|
8300 |
520 |
8000 |
|
6A |
4 |
1450 |
6677-13353 |
1139-724 |
1200x960x990 |
135 |
23 |
Φ600 |
410x560 |
4000 |
720 |
3700 |
|
1.5 |
960 |
4420-8841 |
498-317 |
|
|
|
φ |
|
3600 |
3300 |
||
|
6.5A |
7.5 |
1450 |
8760-17620 |
1330-886 |
250x1000x1050 |
158 |
28 |
Φ650 |
580x460 |
6200 |
1000 |
5800 |
|
7A |
11 |
1450 |
10602-21204 |
1550-984 |
1080x1300x1100 |
235 |
30 |
Φ700 |
555x490 |
7600 |
1200 |
7200 |
