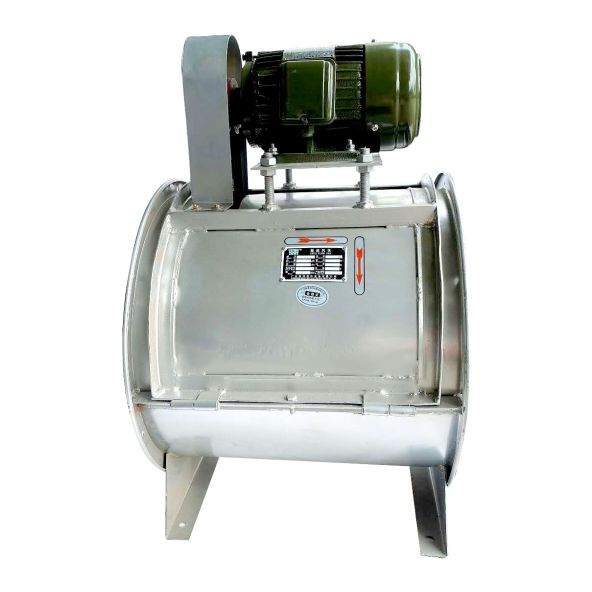

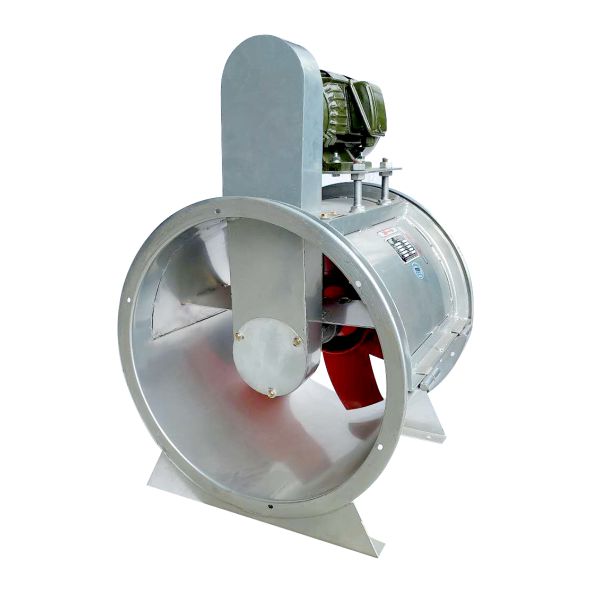

產品展示
PRODUCT結構合理、風葉強度高
噪音低、效率高
適用于排送高溫氣體及其他含油、含水、塵埃氣體
適用于排送不含易燃、易爆、腐蝕性及溫度不超過80°C的氣體,
氣體塵量要求不超過150mg/m3
Reasonable structure with high intensity blade
Low noise,high efficiency
Suitable to transmit the air with the temperature below 80°C in the
environment where has not flammable,explosive and caustic air,
the dust containing index is below 150mg/m3
產品詳情
型號
Model |
電壓
Voltage |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure (Pa) |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
C式單價 Type C unit price (Yuan) |
軸承座價 Price of bearing seat (RMB) |
KT4C-2 |
380 |
1.5 |
2800 |
8370 |
220 |
480×470×710 |
45 |
1.9 |
2100 |
280 |
KT5C-2 |
380 |
3 |
2800 |
10728 |
260 |
500×580×850 |
53 |
3 |
2700 |
280 |
KT5C-4 |
220 |
1.5 |
1450 |
6540 |
145 |
500×580×850 |
42 |
3 |
2500 |
340 |
380 |
||||||||||
KT6C-2 |
380 |
5.5 |
2800 |
17650 |
363 |
500×670×985 |
59 |
5.9 |
4600 |
540 |
KT6C-4 |
380 |
2.2 |
1450 |
14000 |
190 |
500×670×98 |
63 |
5.9 |
4200 |
500 |
KT7C |
380 |
3 |
1450 |
19800 |
210 |
610x770x1070 |
99.3 |
6.4 |
5400 |
700 |
KT8C |
380 |
4 |
1450 |
28350 |
230 |
610X870X1170 |
124 |
7.1 |
6400 |
700 |
KT9C |
380 |
5.5 |
960 |
36455 |
270 |
650X970X1360 |
130(殼葉) |
9.8 |
7700 |
800 |
KT10C |
380 |
7.5 |
960 |
42680 |
295 |
650x1070x1110 |
150 (殼葉) |
11.8 |
8600 |
100 |
