產品展示
PRODUCT

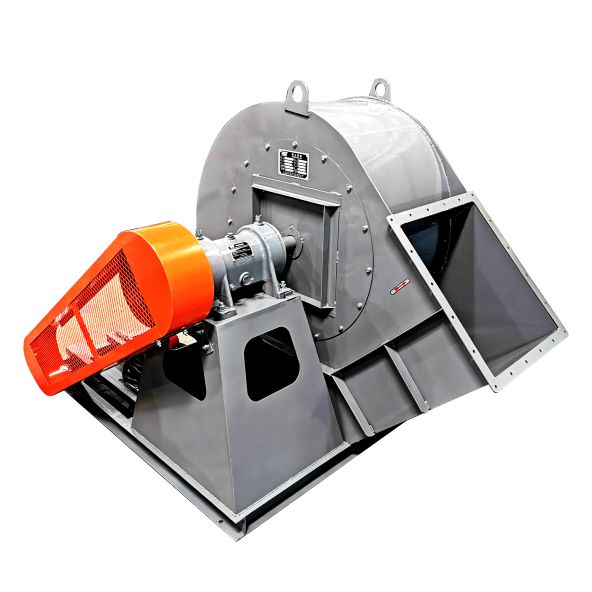

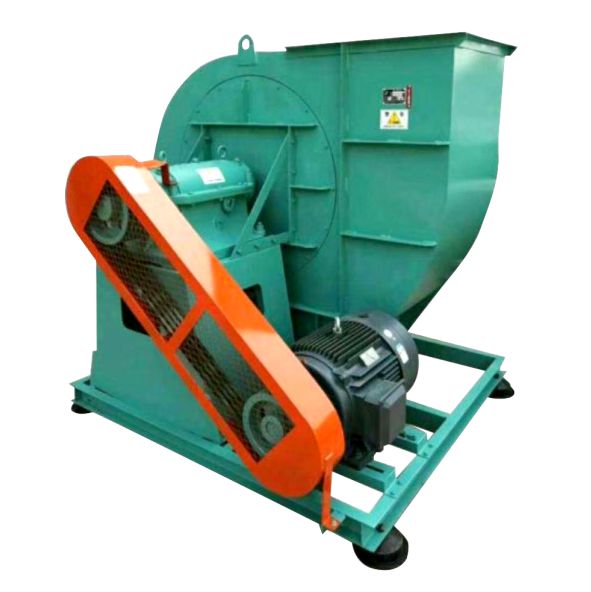

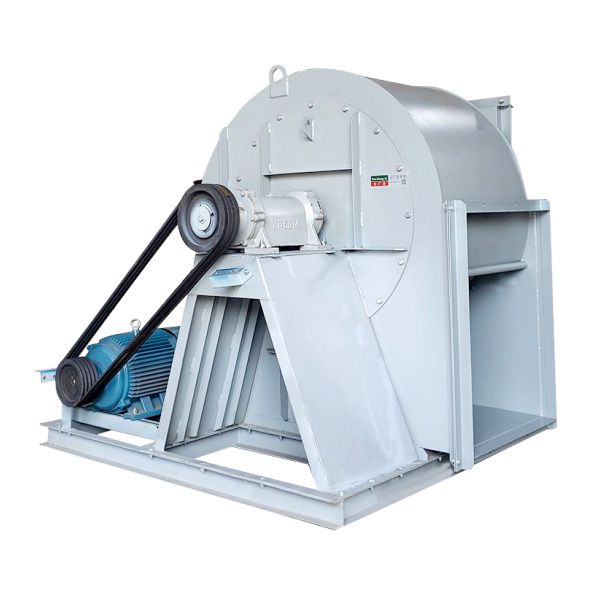

排塵專用風機，不易積塵、耐磨損
適用于排送含油塵埃、木質碎屑、細碎纖維的氣體，也可用為一般的通風換氣用
可以應要求制作成多種傳動式的單機或聊機體
11種型號：2.8A-10C
Specially designed for dust extracting ,not easy to mass
the dirt ,attrition resistant
Suitable for conveying the air with dirt,sawdust ,fine fiber ,
also can be used for ventilation
It can be customized as various kinds of drive type single fan
or succession fan
11 models :2.8A-10C
產品詳情
|
型號
Model |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
噪音 Noise dB(A) |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
整機單價 Unit price of complete machine（RMB） |
風輪價 Wind turbine price （RMB） |
|
3.5A |
4 |
2900 |
2888-6566 |
2436-1300 |
≤86 |
|
|
|
|
|
2800 |
700 |
|
4A |
5.5 |
2900 |
2980-7588 |
3079-1527 |
≤88 |
|
|
|
|
|
3100 |
800 |
|
4.5A |
7.5 |
2900 |
4548-11313 |
4019-2832 |
≤96 |
|
|
|
|
|
5200 |
900 |
|
5A |
15 |
2900 |
4681-12353 |
2330-1250 |
≤97 |
|
|
|
|
|
7200 |
1000 |
|
6C |
18.5 |
2450 |
5317-18453 |
4041-1630 |
≤99 |
|
|
|
|
|
7000 （殼葉） |
1200 |
|
15 |
2200 |
4774-16570 |
3336-1391 |
≤97 |
|
|
|
|
|
|||
|
11 |
1900 |
4123-14310 |
2950-1139 |
≤94 |
|
|
|
|
|
|||
|
7.5 |
1700 |
3689-12804 |
2153-1098 |
≤92 |
|
|
|
|
|
|||
|
7C |
30 |
2200 |
7200-19800 |
4191-2815 |
≤101 |
|
|
|
|
|
9200 （殼葉） |
1800 |
|
22 |
2000 |
6545-18000 |
3533-2396 |
≤99 |
|
|
|
|
|
|||
|
18.5 |
1800 |
5891-16200 |
2937-2016 |
≤97 |
|
|
|
|
|
|||
|
15 |
1600 |
5236-14400 |
2405-1677 |
≤95 |
|
|
|
|
|
|||
|
8C |
30 |
1800 |
8550-23400 |
3037-1561 |
≤100 |
|
|
|
|
|
12000 （殼葉） |
1900 |
|
22 |
1600 |
7600-20800 |
3037-1561 |
≤98 |
|
|
|
|
|
|||
|
15 |
1450 |
6887-18850 |
2566-1353 |
≤96 |
|
|
|
|
|
|||
|
11 |
1200 |
5700-15600 |
1883-1053 |
≤93 |
|
|
|
|
|
|||
|
9C |
30 |
1450 |
9300-25800 |
2976-1549 |
≤99 |
|
|
|
|
|
16000 （殼葉） |
2600 |
|
18.5 |
1200 |
8017-22241 |
2178-1151 |
≤95 |
|
|
|
|
|
|||
|
11 |
1000 |
6413-17793 |
1370-736 |
≤91 |
|
|
|
|
|
|||
|
10C |
45 |
1450 |
13200-36900 |
3612-1917 |
≤103 |
|
|
|
|
|
17600 （殼葉） |
3200 |
|
30 |
1250 |
11379-31810 |
2736-1476 |
≤99 |
|
|
|
|
|
|||
|
22 |
1120 |
10195-28502 |
2236-1224 |
≤97 |
|
|
|
|
|
